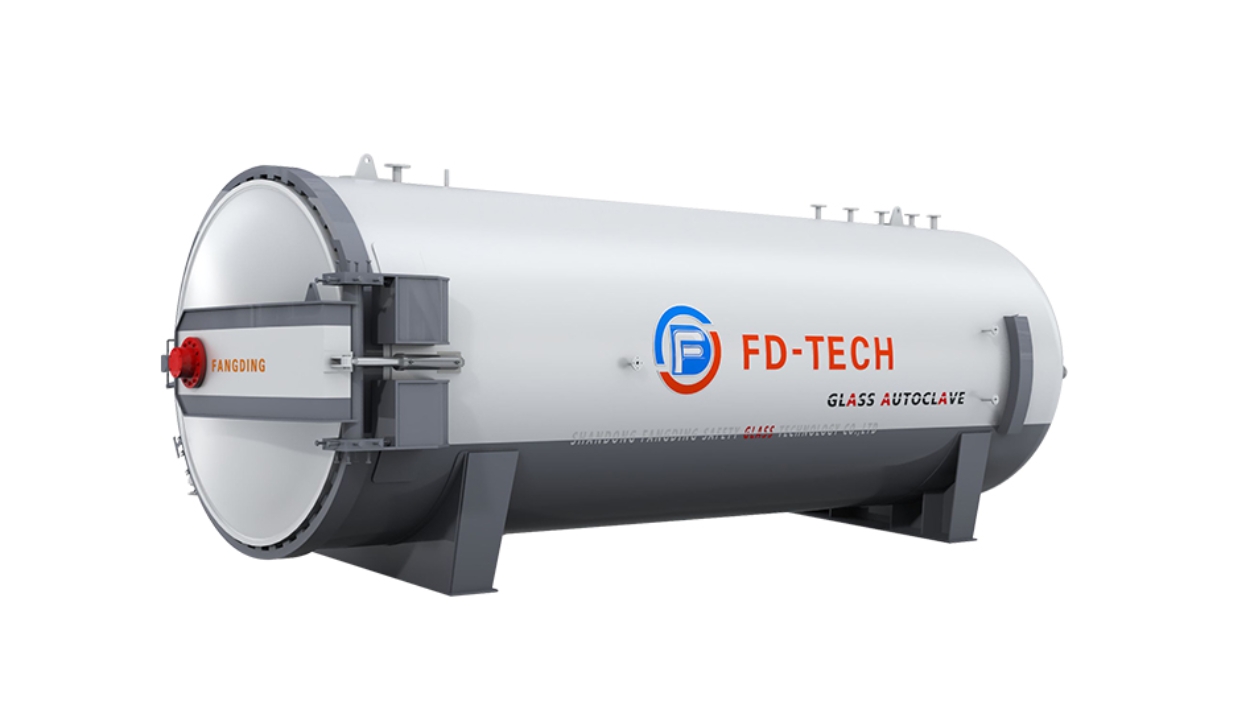

Laminated Glass Autoclave with Safety Interlock

Short Description:

It is designed and manufactured in strict accordance with the national standards,It is composed of the body , the heating system, the air circulation system, the heat preservation system, the cooling system and the safety interlock system .The gate is equipped with mechanical and electrical linkage device,it will alarm under over-temperature or over-pressure,and will cool down under over-temperature and relief pressure under over-pressure .

Send email to us Download as PDF

Product Detail

Product Tags

FANGDING TECHNOLOGYCO.,LTD

Laminated glass autoclave

THE PREFERRED EQUIPMENT FOR

AUTOCLAVE FOR GLASS LAMINATING

4c642e158fc49dfe045bbed3b2e5bf49_compress

Quailty
Assurance

Highquality
hardware

Exquisite
craftsmanship

Perfect after-sales
service

Laminated glass autoclave

--TO PROVIFE YOU WITH HIGH-QUALITY PRODUCTS--

Product Features

The forced convection glass autoclave adopts the pressure vessel
with double convection heating of up and down circulation
and front and back circulation,and adopts PiD control,whichcan
realize the accurate control of temperature andpressure
so that the temperature an dpressure
can change completely according to the design curve;
It is suitable for the synthesisand
manufacture of laminated glass with various process requirements.
In particular,the intermediate
membrane is made of PVB or SGP materials,
and can ensure perfect product quality and yield.

RELIABLE QUALITY AND DASSURED PURCHASE

The laminated glass autoclave can
produce flat and curved laminated glass,
achieve automatic
temperature and pressure program control,
and is equipped with safety interlock devices
ensuring both product quality and
safety during operation.
The equipment accessoriesuse
well-known brands such as Siemens and Delixi
to ensure the stability of the equipment parts.

Technical Parameters

Customization can be made according to the actual needs of customers

Name	Units	DN2100*6000	DN2600*6000	DN2860*6000	DN3000*6000	DN3200*8000	DN3600*8000	DN3800*8000
Inner diameter	mm	2100	2600	2860	3000	3200	3600	3800
Glass length	mm	6000	6000	6000	6000	8000	8000	8000
Max.glass size	mm	1700*6000	2200*6000	2440*6000	2600*6000	2800*8000	3200*8000	3400*8000
Max.press	Mpa	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Max.temp	℃	160	160	160	160	160	160	160
Operating press	Mpa	1.3	1.3	1.3	1.3	1.3	1.3	1.3
Operating temp	℃	120~135	120~135	120~135	120~135	120~135	120~135	120~135
Orbital distance	mm	700	800	850	1000	1000	1100	1100
Circulating fan power	KW	15-30	18.5-37	18.5-37	22-45	22-45	37-75	37-75
Heating power	KW	160	180	228	280	310	360	400
Cooling water volume	m³	30	30	40	40	45	50	60
Compressor power	KW	37	45	55	75	75	90	110
Cable cross-section area	mm²	95	120	150	185	240	300	400

Company Strength

Fangding Technology Co., Ltd. was established in 2003 and is a high-tech enterprise specializing in the research and development, production, sales, and service of laminated glass equipment and laminated glass intermediate films. The company's main products include EVA laminated glass equipment, intelligent PVB laminated glass production line, autoclave, EVA, TPU intermediate film. At present, the company has a pressure vessel license, ISO quality management system certification, CE certification, Canadian CSA certification, German TUV certification and other certificates, as well as hundreds of patents, and has independent export rights for its products. The company participates in well-known exhibitions in the global glass industry every year and allows international customers to experience Fangding's design style and manufacturing process through on-site glass processing at the exhibitions. The company has a large number of skilled senior technical talents and experienced management talents, dedicated to providing a complete set of solutions for laminated glass technology for glass deep processing enterprises. Currently, it serves more than 3000 companies and multiple Fortune 500 enterprises. In the international market, its products are also exported to many countries and regions such as Asia, Europe, and the United States.

Customer Feedback

The equipment is sold to varous countriesand has received unanimous praise from customers

For many years,the products sold have won the trust and praise of customers
both domestically and internationally with high-quality products and sincereservice.

R & D TECHNICAL TEAM

Technical seminar

Detail communication

Experienced

Drawing calculation

Qualification Certificate

During the shipping process, we will package and cover the equipment appropriately to avoid any unexpected situations and ensure that the equipment arrives at the customer's factory in good condition. Attach warning signs and provide a detailed packing list.

Exhibition Style

Fangding Service

Pre sales service:

Fangding will provide equipment models suitable for customers based on their needs, provide technical information on relevant equipment, and provide basic design plans, general drawings, and layouts when quoting.

In sales service:

After the contract is signed, Fangding will strictly implement each project and relevant standards for each production process, and communicate with customers in a timely manner about equipment progress to ensure that customer requirements are met in terms of process, quality, and technology.

After sales service:

Fangding will provide experienced technical personnel to the customer's site for equipment installation and training. At the same time, during the one-year warranty period, our company will provide corresponding equipment maintenance and repair.
